[IMG290] Add new crop widget for interactive cropping

Zhang, Chen requested to merge IMG290_new_crop_widget into next

Original Gitlab Story: IMG290

This PR introduces the following changes:

  • a new interactive widget for interactive cropping
  • a temp utility function that allows executing one single task

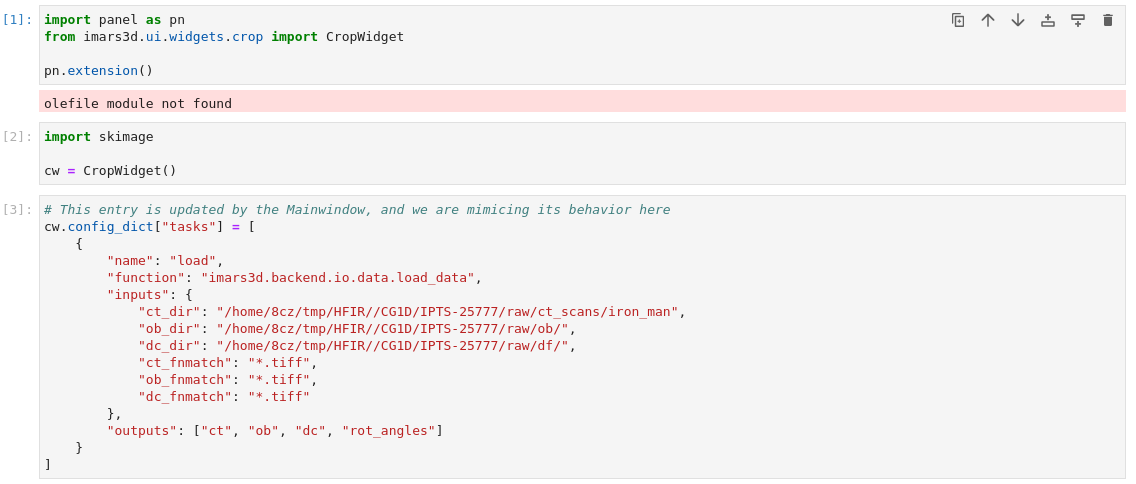

To test, run the following:

import panel as pn
import holoviews as hv
from imars3d.ui.widgets.crop import CropWidget

pn.extension()
hv.extension('bokeh')

crop_widget = CropWidget()
# manual update the embedded config to make sure the load task
# has valid entries as we will be using those to test the widget.
crop_widget.config_dict["tasks"] = [
{
            "name": "load",
            "function": "imars3d.backend.io.data.load_data",
            "inputs": {
                "ct_dir": "/HFIR/CG1D/IPTS-25777/raw/ct_scans/iron_man",
                "ob_dir": "/HFIR/CG1D/IPTS-25777/raw/ob/Oct29_2019/",
                "dc_dir": "/HFIR/CG1D/IPTS-25777/raw/df/Oct29_2019/",
                "ct_fnmatch": "*.tiff",
                "ob_fnmatch": "*.tiff",
                "dc_fnmatch": "*.tiff"
            },
            "outputs": ["ct", "ob", "dc", "rot_angles"]
}]

crop_widget  # or pn.panel(viewer_window) or viewer_window.show() or viewer_window.servable()

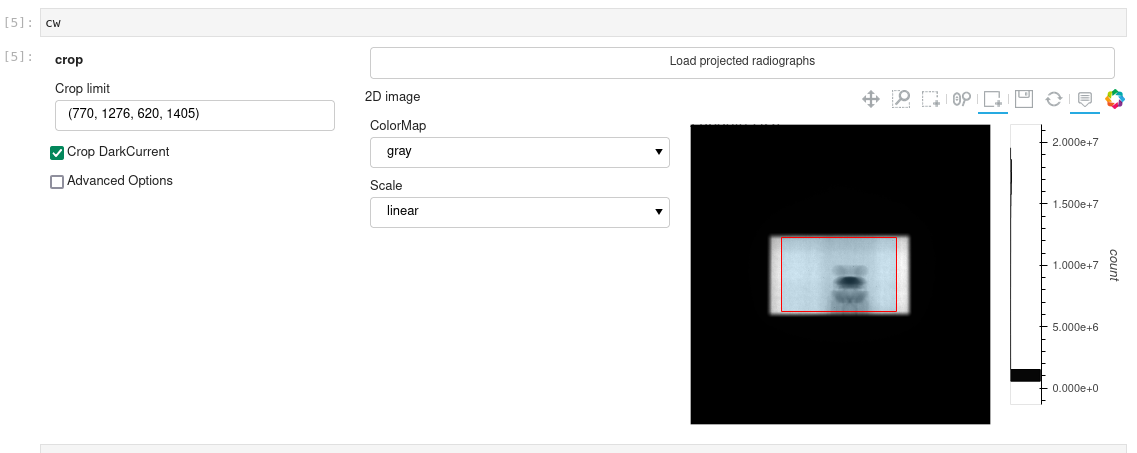

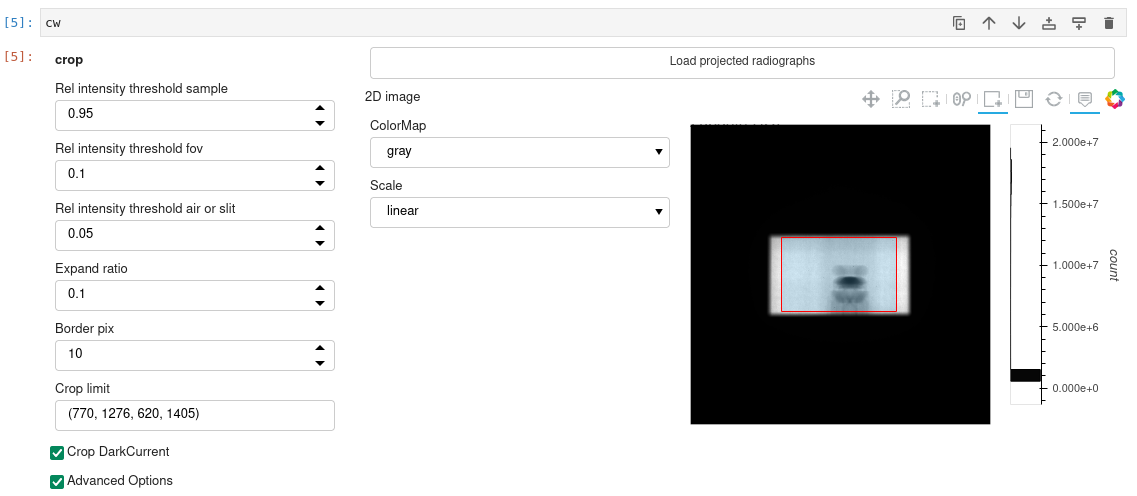

Screenshots
